Quick Details

  • Condition: New
  • Type: Cone Crusher, Concentrator
  • Application: granite,quartzite,etc., granite,quartzite,etc.
  • Motor Type: AC Motor
  • Power(W): 75~400 kw
  • Capacity(t/h): refer to specification
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Hongxing
  • Model Number: Based on models
  • Dimension(L*W*H): Refer to specification
  • Weight: 9980~86730 kg, 4490-89500 kg
  • Certification: BV,CE.GOST,ISO9001:2008
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certificate: BV,CE.GOST,ISO9001:2008
  • Warrenty: 1 year
  • Brand name: Hongxing
  • Motor power: 22-400 kw
  • Spare parts: China standard
  • Dia.of crushing cone: 600-2134 mm

Packaging & Delivery

Packaging Details standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery Time 20 working days after placing the order

Specifications

Mining rock compound cone crusher
30-year experience
20 days delivery
BV,CE,ISO,GOST
Fine product size,Even granularity



Product Description

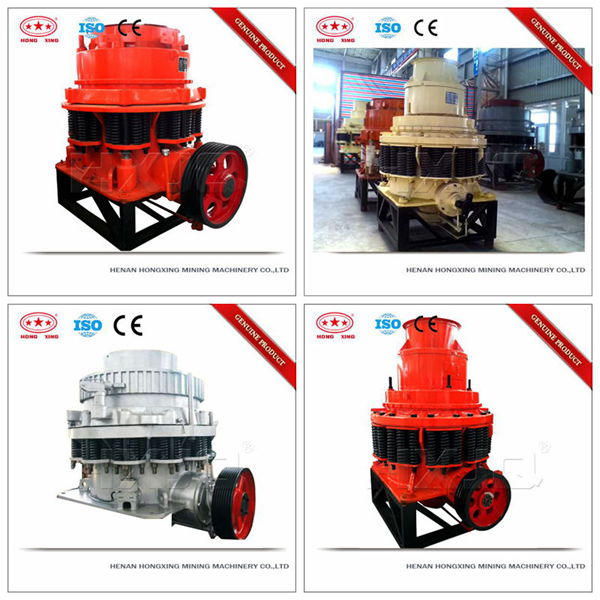

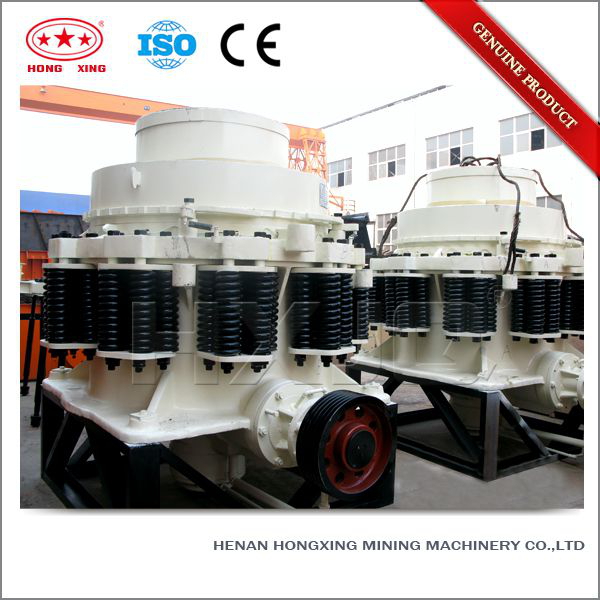

Mining rock compound cone crusher
All of our products:http://hxjq.en.alibaba.com/

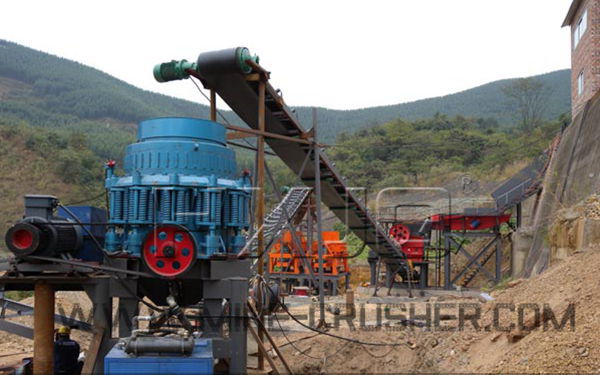

Application of Mining rock compound cone crusher
1. Mining rock compound cone crusher is widely used in mining, concrete factory, sand stone making, etc.
2.It is widely suitable for primary crushing of many kinds of mining and rock such as many kinds of ores, concrete, fireproof material, bauxite, quartzite, corundum, perlite, ironstone, basalt, etc


Features of Mining rock compound cone crusher
1. Higher capacity and less wear costs.
2. Wide range of application suitability.
3. Stable bevel wheel transmission device
4. Balanced runout rotation ensures best capacity.
5. Proper operation, continuously load until the machine shut down scheduled

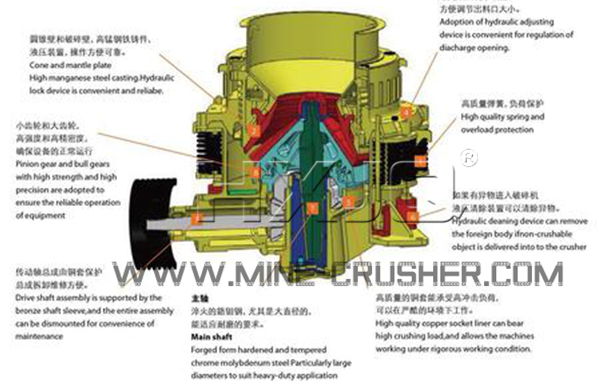

Working principle of Mining rock compound cone crusher
1.The safety mineral system is the overload protection device,which makes foreign material goes through the machine without bring any hurt to it.
2.The sealing modes are oil and water,which segregate the stone powder and lubricating system.
3.The crushing chamber is decided by the purpose of ore,the standard model is suitable for medium crushing.


Techonical parameters of Mining rock compound cone crusher

SpecificationsModelCavityLarge end diameter of crushing cone(mm)Adjusting range of discharge opening (mm)Feed opening size of the open edge when recommending the Min.discharge opening(mm)Max.Feeding size (mm)Processing capacity (m³/h)Main motor power (kw)Weigh(kg)Dimensions (L×W×H) (mm)
Φ900PYFB-0910Standard fine type900(3`)9-221028545-917599802656×1636×2241
PYFB-0917Standard coarse type12-3817515059-163
PYFD-0904Short head fine type3-13413527-90
PYFD-0906Short head coarse type3-16766527-100
Φ1300PYFB-1313Standard fine type1295(4¼`)13-31137115109-181160224602983×1866×3156
PYFB-1321Standard medium type16-38210178132-253
PYFB-1324Standard coarse type19-51241205172-349
PYFD-1306Short head fine type3-16645436-163
PYFD-1308Short head medium type6-16897682-163
PYFD-1310Short head coarse type8-2510589109-227
Φ1600PYFB-1620Standard fine type1676(5 ½`)16-38209178181-327250432703641×2954×3771
PYFB-1624Standard medium type22-51241205258-417
PYFB-1626Standard coarse type25-64269228299-635
PYFD-1607Short head fine type5-13706090-209
PYFD-1608Short head medium type6-198976136-281
PYFD-1613Short head coarse type20-25133113190-336
Φ2100PYFB-2127Standard fine type2134(7`)19-3878236544-1034400867304631×3302×4638
PYFB-2133Standard medium type25-51334284862-1424
PYFB-2136Standard coarse type31-643693141125-1814
PYFD-2110Short head fne type5-1610589218-463
PYFD-2113Short head medium type10-19133113404-580
PYFD-2117Short head coarse type13-25178151517-680


Company Information














Our Services

Our sale service

1.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4.We provide one-year warranty to make sure your machine runs consistently.

We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years


Packaging & Shipping

Our payment terms:
1. We usually accept T/T, L/C,
2. T/T: 30% in advance as down payment, the balance before delivery;
3. We take pictures of finished products before delivery.
Transportation:
1. By sea freight: APL,COSCO, OOCL, CSCL, MSC, etc.
2. We will remind you before boat arrival




FAQ

The questions you are concerning on

How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.

Guaranteed:
If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time  and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according  to quantity”.
